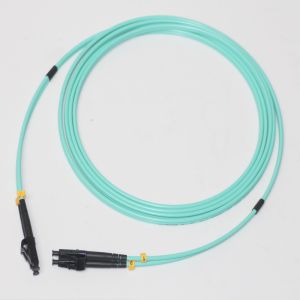

3.0mm LC to LC Fiber Multimode OM3 Optic Pigtails Duplex Patch Cable
Description
Hangalaxy Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents. Please note: E2000 is an LSH connector with a dust-proof cover.
Armored Optical Fiber Cords Structure
Constructed with a helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket. Customized Jacket Material and Connector.
Features
(1) Using high precision ceramic ferrule;
(2) Low insertion loss and high return loss;
(3) Excellent stability and high repetition;
(4) 100% Optic test (Insertion Loss & Return Loss).
Applications
1. Telecommunication Network;
2. Fiber Broad Band Network;
3. CATV system;
4. LAN and WAN system;
5. FTTP.
Technical Parameter
| Fiber Type | SM | MM |
| Connector Tytpe | MTRJ | D4, FC, SC, ST, LC, E-2000, MU | D4, FC, SC, ST, LC, E-2000, MU | MTRJ |
| Insertion Loss (Typical) | ≤0.4dB | ≤0.2dB | ≤0.4dB | ≤0.2dB |
| Insertion Loss (Max) | ≤0.5dB | ≤0. 3dB | ≤0.3dB | ≤0.5dB |
| Return Loss (Typical) | PC | | ≥50dB | |
| APC | ≥65dB | |
| UPC | ≥55dB | ≥55dB | |
| Mating Durability | ≤0.2dB |
| Durability | ≥1000 times |
| Storage Temperature | - 40℃～+ 85 |
| Cable Diameter | 0.9mm |
| Jacket Color | Yellow or Customized |
| Connector | LC |
| Polishing Type | APC |
| Fiber Type | G657A1, SM, Single-mode |
| Cable Length | 1m / 10ft; or customized |
| Environmental Space | Plenum |
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
PLC Spliters Workshop
Hangalaxy Exhibition Activities
Packing Information
1PCS Each Individual Quality PE Bag.
If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
